When Your Closet Door Won’t Stay Put: What to Know About Bi Fold Door Brackets
Bi fold door brackets are the small but critical pieces of hardware that keep your folding closet doors aligned, stable, and moving smoothly. When they wear out, bend, or break, the whole door system suffers — panels sag, stick, or pop out of the track entirely.
Here’s a quick look at the most common bracket types and what they do:
| Bracket Type | Location | Primary Function |
|---|---|---|
| Top pivot bracket | Top corner of door panel | Anchors door to overhead track |
| Bottom pivot bracket | Bottom corner of door panel | Supports door weight at the floor |
| Jamb bracket | Door frame (jamb) | Stabilizes bottom pivot pin |
| Corner repair bracket | Top or bottom door corner | Reinforces split or cracked wood |
| Floor pivot bracket | Floor beneath door | Alternative bottom anchor point |
Most standard residential bi fold door brackets fit door panels between 1 inch and 1-3/8 inches thick and support panels up to 50 lbs. Heavy-duty commercial systems can handle panels up to 125 lbs.
The good news: in most cases, you don’t need to replace the entire door — just the bracket.
I’m Eryk Piatkowski, owner of K&B Direct, and after more than a decade helping homeowners source the right bi fold door brackets and closet hardware, I know exactly which parts tend to fail first and what to look for in a reliable replacement. Let’s walk through everything you need to make the right call.
Basic bi fold door brackets terms:
Essential Types of Bi Fold Door Brackets
To keep your folding closet doors operating smoothly, you must understand the specific roles of each hardware component. Folding doors rely on a system of interlocking parts that distribute weight and guide movement. When a single piece fails, the entire door can become misaligned.
Let’s break down the essential types of bi fold door brackets that you will encounter:
- Top Pivot Brackets: These are installed inside the overhead track. They receive the top pivot pin of your door, locking the pivoting side of the panel in place while allowing it to rotate.
- Bottom Pivot Brackets: These sit at the base of the door frame. They support the substantial weight of the door panels and allow for height adjustments.
- Jamb Brackets: These attach directly to the side door jamb near the floor. They are highly popular because they do not require drilling into your flooring.
- Floor Mount Brackets: These fasten directly to the floor. They provide exceptional stability for heavy solid-wood doors.
- Corner Reinforcement Brackets: These are specialized brackets designed to save split or damaged wood panels.
For a complete overview of how these parts interact, check out our guide on Closet Door Anatomy 101: Identifying Every Part and Piece.
Selecting the Right Bi Fold Door Brackets for Your Panel Thickness
Standard residential folding doors typically measure either 1-1/8 inches or 1-3/8 inches in thickness. Selecting a bracket that matches your specific door thickness is crucial for proper alignment.
If you have a damaged or split wooden door corner, you do not have to purchase an entirely new door. Instead, you can use specialized reinforcement hardware. For instance, the 1-1/8 in. Corner Mount Bi-Fold Door Reinforcement Bracket is engineered to wrap around the corner of a 1-1/8 inch thick door, reinforcing the split wood where the pivot pin inserts.
For doors with larger pivot pins, you can utilize options like the Bi-Fold Door Restoration Bracket for 3/8 in. and 7/16 in. Pivots, which stabilizes worn pivot holes in standard panels. If you are dealing with brand-specific systems, components like the Bi-Fold Door Top Pivot Bracket, Cox are designed to fit 7/8 inch wide tracks with steel housing for long-lasting durability.
Key Features of Reliable Bi Fold Door Brackets
When shopping for replacement hardware, certain materials and design features stand out for their durability:
- Stamped Steel Construction: Heavy-duty stamped steel resists bending under the constant stress of heavy door panels.
- Zinc Plating: A yellow zinc or clear zinc finish protects the steel from humidity and rust, which is especially important in laundry rooms and bathrooms.
- Nylon Bushings: High-quality brackets feature nylon inserts or bushings that reduce metal-on-metal friction, ensuring quiet operation.
- Adjustability: Look for brackets with wide, slotted mounting holes. These allow you to slide the bracket left or right to align your doors perfectly.
For a straightforward swap, you can purchase a 2-7/8 in. Bi-Fold Door Jamb Bracket (2-Pack) to refresh both sides of a double-door closet. Alternatively, the Bi-Fold Door Pivot, Bracket and Guide Set provides a matched set of stamped steel and mold-injected plastic parts designed specifically for older wardrobe systems. If you have exceptionally heavy doors, a single heavy-duty option like the Heavy Duty Bi-Fold Door Bracket (Single Pack) offers four-way adjustability to handle extra weight without slipping.

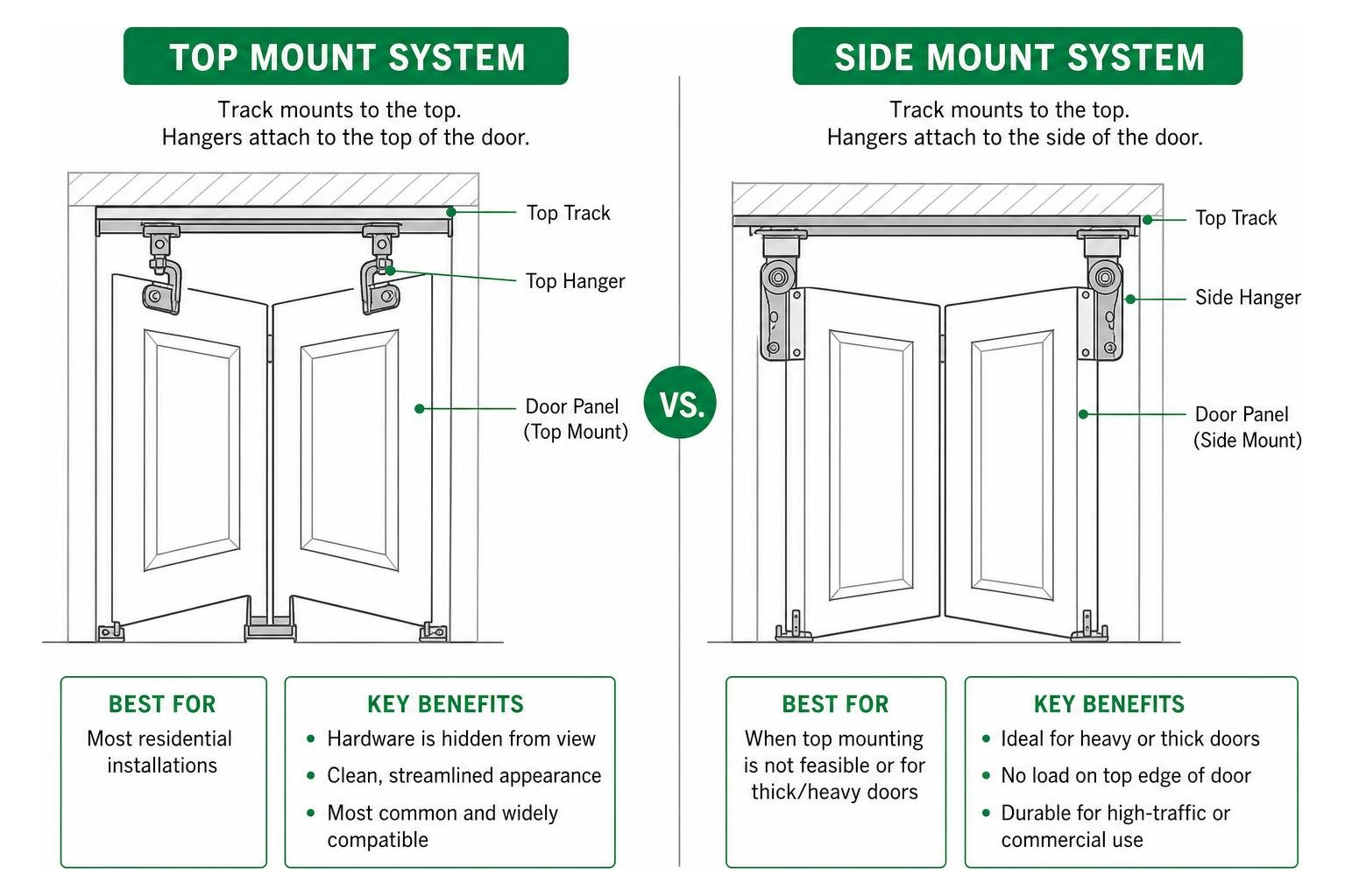

Top Mount vs. Side Mount Hardware Systems
The way your folding doors hang determines the type of brackets and hangers you need. The two primary mounting configurations are top-mounted and side-mounted systems.
In a top-mounted system, the track attaches directly to the ceiling or the top of the door frame. The hangers attach to the top edge of the door panels. This is the most common residential setup, keeping the hardware hidden from view.
In a side-mounted system, the hangers attach to the side face of the door panels rather than the top edge. This setup is highly beneficial when top-mounting is not structurally feasible, or when working with exceptionally thick, heavy doors.
For example, the Johnson Hardware 200FS Side Mounted Bi-Fold Door Hardware is a commercial-grade, top-hung system that can support massive panels weighing up to 125 lbs each. This system uses an I-beam track made from extruded aluminum and heavy-gauge steel brackets with zinc trivalent plating to prevent corrosion.
If you are planning a new closet layout, explore our selection of Bifold Closet Doors to find the perfect style for your space.
Step-by-Step Installation and Alignment Guide
Replacing your bi fold door brackets is a highly manageable task that can restore smooth operation to your closet doors in under an hour.
Follow this straightforward process to install and align your new brackets:
- Remove the Door Panels: Fold the doors together, then gently depress the top guide wheel and top pivot pin to release them from the track. Carefully lift the door panels out of the bottom bracket and set them on a flat surface.
- Measure the Track and Frame: Check your track length to ensure proper alignment. Standard track lengths include 24-inch, 40-inch, and 64-inch options. If your track is slightly too long for your opening, you can use a hacksaw to cut it down to the exact size.
- Remove the Worn Hardware: Unscrew the damaged top or bottom bracket from the door frame or track. If the wood around the screw holes is stripped, insert wooden toothpicks with wood glue into the holes, let them dry, and cut them flush before installing new screws.
- Install the New Bracket: Position your new bracket. If you are using a jamb-mounted bottom bracket, line it up with the floor and secure it to the side jamb using the provided screws.
- Reinsert the Door: Place the bottom pivot pin of the door panel into the bottom bracket. Depress the top pivot pin and guide wheel, sliding them into the overhead track until they click into place.
- Adjust for Perfect Alignment: Use an alignment wrench to turn the adjustment screw on your bottom bracket. This allows you to raise or lower the door panel (often up to 5/16 of an inch). Slide the bracket within its slotted holes to adjust the doors left-to-right until the gap between the doors is uniform.
For more detailed tips on managing rollers and pins during this process, read The Ultimate Guide to Replacing Bifold Door Rollers and Pins.
Frequently Asked Questions About Closet Hardware
What is the Weight Capacity of Standard Closet Hardware?
The weight capacity of your folding door hardware depends on the grade of the system. Overloading your brackets will cause them to bend, leading to sagging doors and damaged tracks.
| Hardware Grade | Typical Application | Max Panel Weight Capacity | Max Panel Height |
|---|---|---|---|
| Light Residential | Pantry / Standard Closets | 30 lbs to 35 lbs | 80 inches |
| Standard Residential | Bedroom Closets | 40 lbs to 50 lbs | 96 inches |
| Commercial Grade | Heavy Wood / Solid Core Doors | 75 lbs to 125 lbs | 108 inches |
Always match your door panel weight to the rated capacity of your hardware kit to ensure safe and quiet operation.
What Tools Are Needed for Installation?
You only need a few basic tools to complete a bracket replacement:
- Screwdriver: A Phillips-head screwdriver to secure the bracket screws.
- Tape Measure: To verify door thickness and track alignment.
- Drill: Useful for pre-drilling pilot holes in wooden frames.
- Level: To ensure the track and side jambs are perfectly plumb.
- Alignment Wrench: Often included in hardware kits to adjust the height of the bottom pivot.
What is the Difference Between Floor and Jamb Mounts?
A floor-mounted bracket screws directly into the floor surface, providing maximum vertical support. This is excellent for heavy solid-core doors but can be difficult to install on concrete or tile floors.
A jamb-mounted bracket attaches to the side door frame just above the floor. It keeps the floor clear of fasteners and is much easier to install, making it the preferred choice for most standard residential closets.
Conclusion
Upgrading or replacing your bi fold door brackets is a simple, highly effective way to keep your home looking its best and operating smoothly. At K&B Direct, we are dedicated to helping homeowners across the Chicago area — from Niles and Park Ridge to Elmhurst and Schaumburg — find high-quality door hardware at unbeatable, lowest possible rates.
Whether you need to reinforce a split wood panel, swap out a bent bottom jamb bracket, or replace a worn-out door knob, we are here to provide friendly service and top-quality products. For more tips on keeping your closet doors in perfect working order, check out our guide on Fixing a Bifold Closet Door Knob or explore our full Bifold Doors Category to find everything you need for your next home improvement project.
